Hello, the promotion activity of 1$ for 10PCS TTC Random Switches aims to allow more keebs to experience TTC switches. Therefore, this blog will introduces some basic information about these TTC switches.
Characteristic:
Durability: 100 Million
Type: Linear
Total travel: 3.7mm
Pre travel: 1.08mm
Operating force: 45±5gf
Carefully crafted zodiac tiger head pattern, precision mold processing patented technology;
The ancient Chinese character "壬寅（Ren Yin）" has a national style, full of charm;
Anti-corrosion coating electroplating process, gold-plated double contacts, reliable and stable.

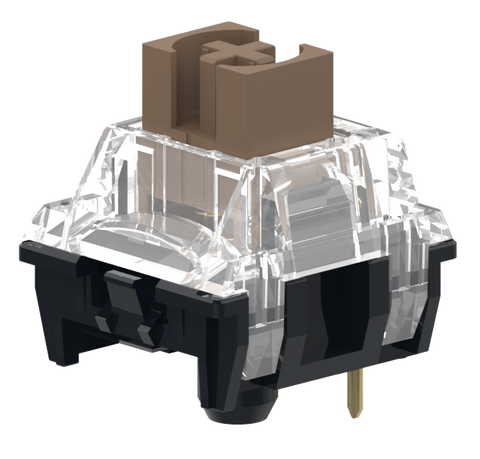

Characteristic:
Durability: 50 Million
Type: Linear
Total travel: 2.0 mm
Pre travel: 3.5 mm
Operating force: 39±10gf
Silent Linear, Dust Proof, Plate Mount (3 Pin), Crystal Clear Housing
Characteristic:
Durability: 100 Million
Type: Linear
Total travel: 3.8 mm
Pre travel: 2 mm
Operating force: 42gf
Characteristic:
Operating force:45±10gf
Pre-travel:1.9±0.6mm
Total travel:3.7-0.4mm
Leaf spring: Gold contact
Terminal: Gold contact
Characteristics: Linear
Characteristic:
Operating force: 45±10gf
Pre-travel: 2.0±0.4mm
Total travel: 3.8-0.4mm
Leaf spring: Gold contact
Terminal: Gold contact
Characteristics: Tactile
Characteristic:
Support both normal RGB and underglow SMD led.

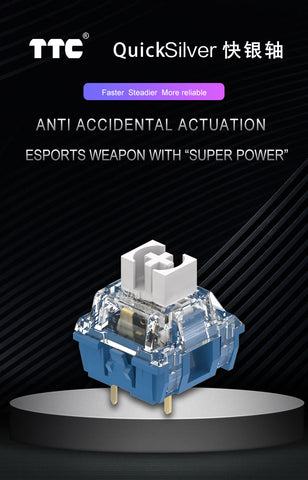

TTC Speed silver actuation distance is around 1.08mm which is much ahead of normal switch.This is good for many operation games.
Conduction Force is 1.08+0.4/-0.2mm, which is 46% faster than the standard mechanical switch 2.0mm and 10% faster than the traditional silver switch 1.2mm.
The initial force is around 39gf
The operation force is 45gf
The lifetime is around 100 million times
Characteristic:
Tactile 63.5g gold-plated spring
Stem material: POM
Top housing material: PC
Bottom housing material: Nylon
PCB mount
MX-compatible
Lubed from the factory
Characteristic:
1.This link is only the shaft and switches for mechanical keyboard,no keyboard included.It's 3 pin switches
2.It can support SMD leds.
If you want to install 2 pin 4 pin switch leds, you need to solder led at first onto PCB and then put on switches on
3.TTC brother switch is tactile clicky switches,actuation weight is around 37gf.Total travel distance is around 3.75mm
4.The lifetime is around 80 million times

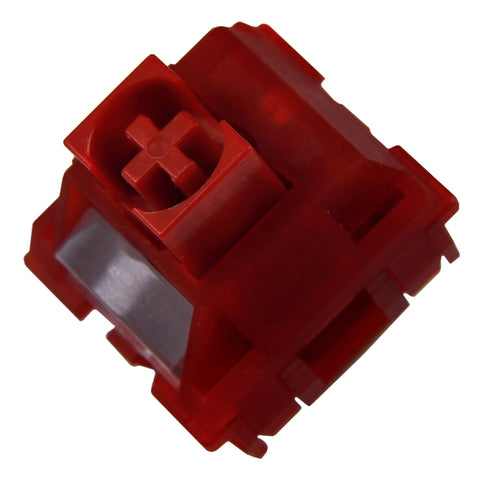

10. Linear Flame Red
Characteristic:
Support SMD RGB leds
Operating force: 45±5gf
Durability: 100 million times
Total travel:4.0-0.3mm
Pre-travel:2.0±0.6mm
Leaf Spring: Gold contact
Terminal : Gold contact
Housing: PA nylon
Axis : POM (factory lubed)
Special Design: collect backlight mirror ,good for backlit through
Spring: The longest spring for TTC , up to 24.5mm,strong rebound.

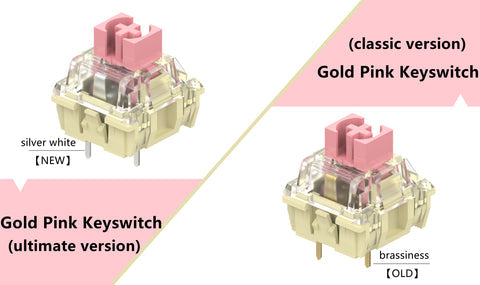

11. TTC Gold Pink V2
Characteristic:
✔3 Pin Linear 37gf Light Switch, Soft touch but Strong rebound
✔ Better wall structure than 1st Generation, makes it zero scratching sound and more stable
✔37gf Light switch brings comfortable and smooth feeling. Moreover, it protects your fingers and hands during long duration typing & gaming
✔Total travel is 4.0-0.3mm, Pre travel is 2.0±0.3mm, Operating force is 37±5gf, Durability is100 Million. The duration is twice of ordinary mechanical switches.
✔Note: TTC Gold Pink 2nd Generation can only support SMD leds

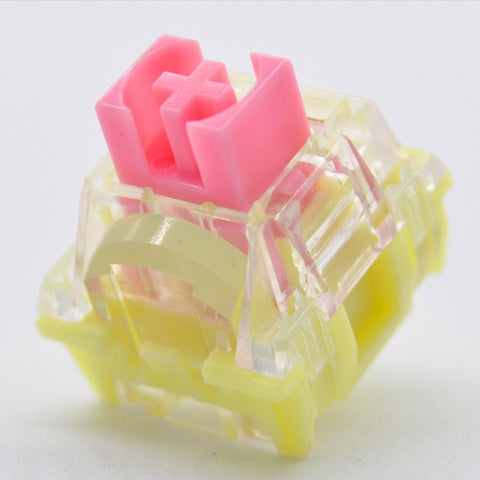

12. TTC Gold Pink V2 Condenser
Performance is as same as TTC Gold Pink V2, but condenser is added.
