Kailh Polia Tactile Mechanical Keyboard Switch

Kailh Polia switch Game Machine Keyboard DIY switch RGB/SMD MX Switches advance Tactile hand feeling. Kailh Polia switch Game Machine Keyboard DIY switch RGB/SMD MX Switches advance Tactile hand feeling.Operation Force: 45±10gf, operating life: 70,000,000 cycles.

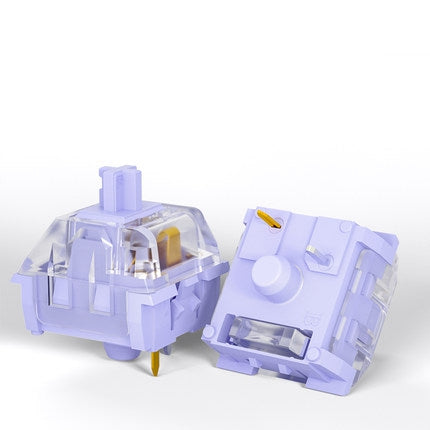

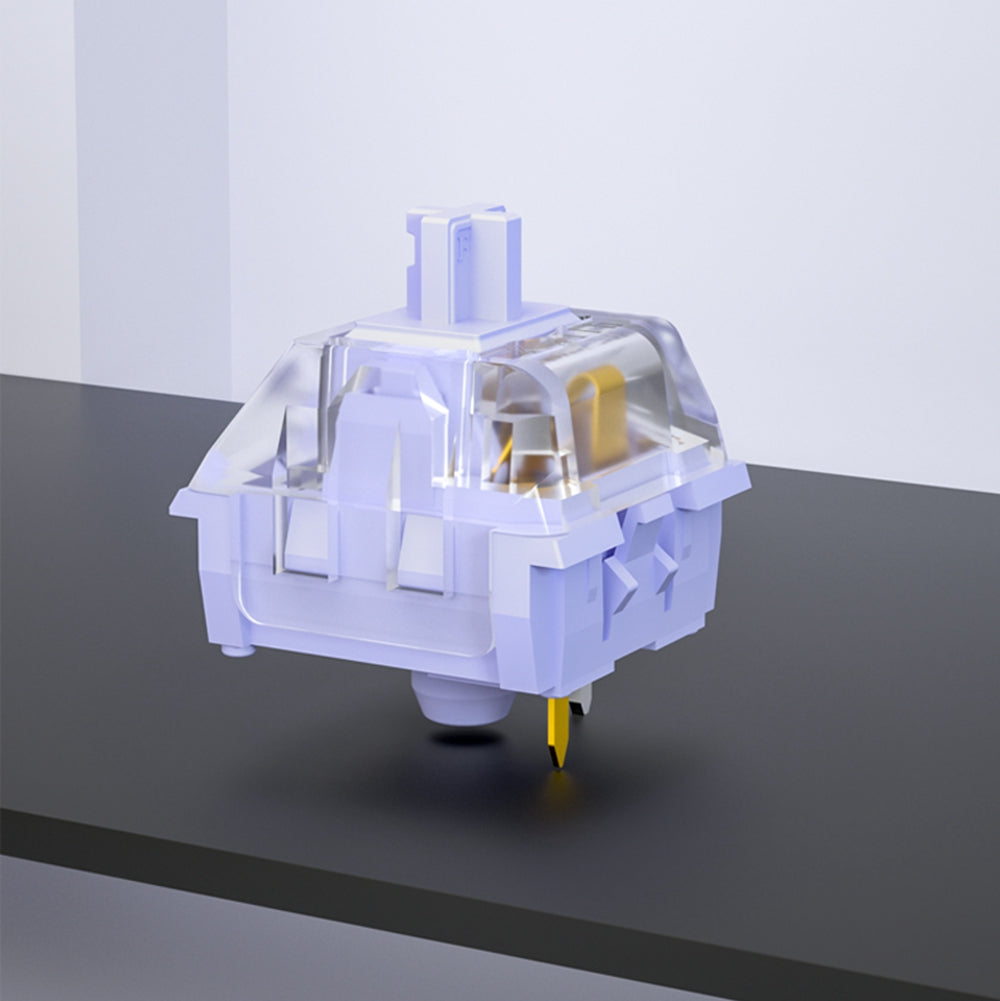

A smooth operator with a self-proclaimed “fourth” feel. Deviating from the big three (linear, clicky, and tactile), the Polia experience is termed “advanced tactile,” and it’s characterized by a relatively hefty actuation force, a lighter than normal operating force, and a smooth tactile bump. The closest cousin is purported to be the famed Holy Panda—not bad company to keep when it comes to tactile switches. Featuring 3-pin plate mounts with playful purple housings and see-through tops.

Rating: 12V AC/DC

Contact Resistance: 200mΩ Max

Insulation Resistance: 100mΩ Min(DC500V)

Withstand Voltage: AC100V(50-60Hz) for 1 minute

Bounce Time:≤5 msec

Operation Force: 45±10gf

Tactile Force: 60±10gf

Conduction Travel:1.90mm ±0.6mm

Total Travel:3.8mm ±0.6mm

Operating life: 70,000,000 cycles
